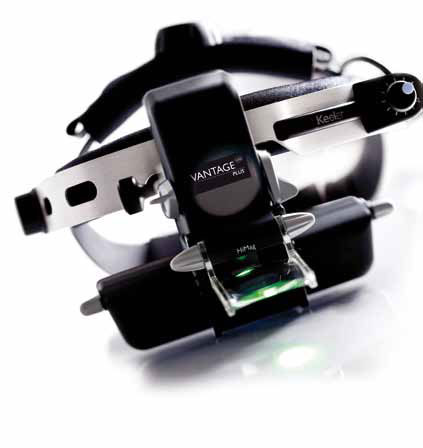

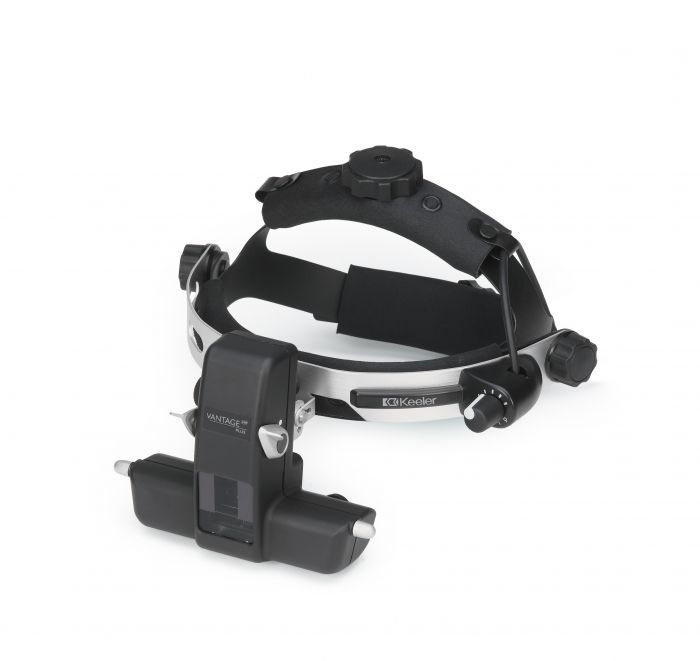

Keeler Vantage Plus LED Convertible Indirect Ophthalmoscope

Natural LED cooler colour

The natural LED cooler colour provides brighter, whiter illumination, longer battery life, freedom from purchasing bulbs and a life expectancy of up to 10,000 hours.

Clinically, the superior optics combined with the natural LED illumination could provide greater detail, allowing you to find retinal pathology that was not visible with the Xenon bulb.

New Slimline Lithium Polymer battery
Our new Slimline Lithium Polymer battery weighs only 53 grams and is as light and as small as the new mini iPod.

• Comfortable and perfectly balanced
• Wireless technology allows you to move from room to room
• Combined natural LED and Lithium Polymer battery can provide up to 6 hours of use on a single charge

Quality and efficiency
The new high contrast optics combined with the new natural LED or Xenon light source offer brighter high definition retinal images - PLUS you get more life from whichever Keeler battery (Metal Hydride or Lithium) you use.

15% lighter
Advanced textured engineering materials provide a lighter, smaller and more compact instrument without compromising the renowned Keeler reputation for robustness, reliability and quality.

Filters and Apertures
IR/UV filters are built into the optics of the Vantage Plus with optional filters and a choice of 3 apertures plus a soft light diffuser.

Unique - Intelligent Optical System (IOS) (Patented)
At last - now when you change the aperture the optics and mirrors automatically adjust for you, without the need to flip another lever! Keeler has designed this unique one step movement to make your examinations easier and faster. The (IOS) mechanism (patented) means that when you select the small, medium or large aperture the optics automatically adjust, providing 3 dimensional stereoscopic views of the retina through all pupil sizes.

• Large Pupil
  When looking through a large fully dilated pupil the optics are separated and the light source remains in the upper position, achieving maximum stereopsis.
• Intermediate Pupil
  The viewing optics and light sources are in a ‘mid position’ for maximum stereopsis.
• Small Pupil
  When looking through a small pupil the viewing optics and light source are converged to allow you to view the retina through the smallest pupils stereoscopically.

Unique - The new HiMagTM lens just slides on and off with ease
This unique feature is only offered with the Vantage Plus indirect. It gives you 1.6X additional magnification than with a condensing lens alone, providing superb stereoscopic images. Scratch resistant coated optics guarantee high quality images at all times and HiMagTM can be simply flipped out of view when not required.

Teaching mirror slides on and off with ease
Allowing two observers to view the retina at the same time.
