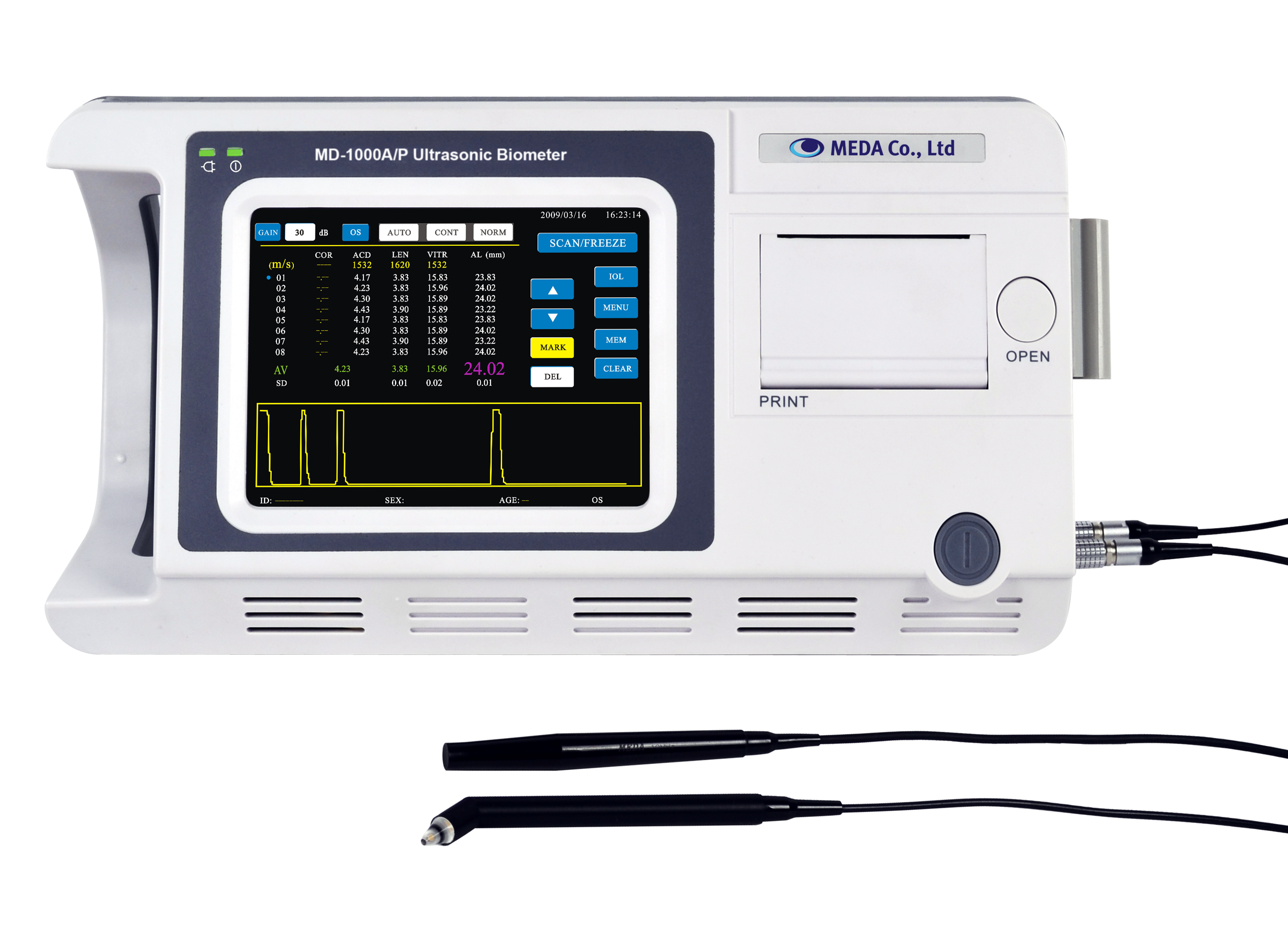

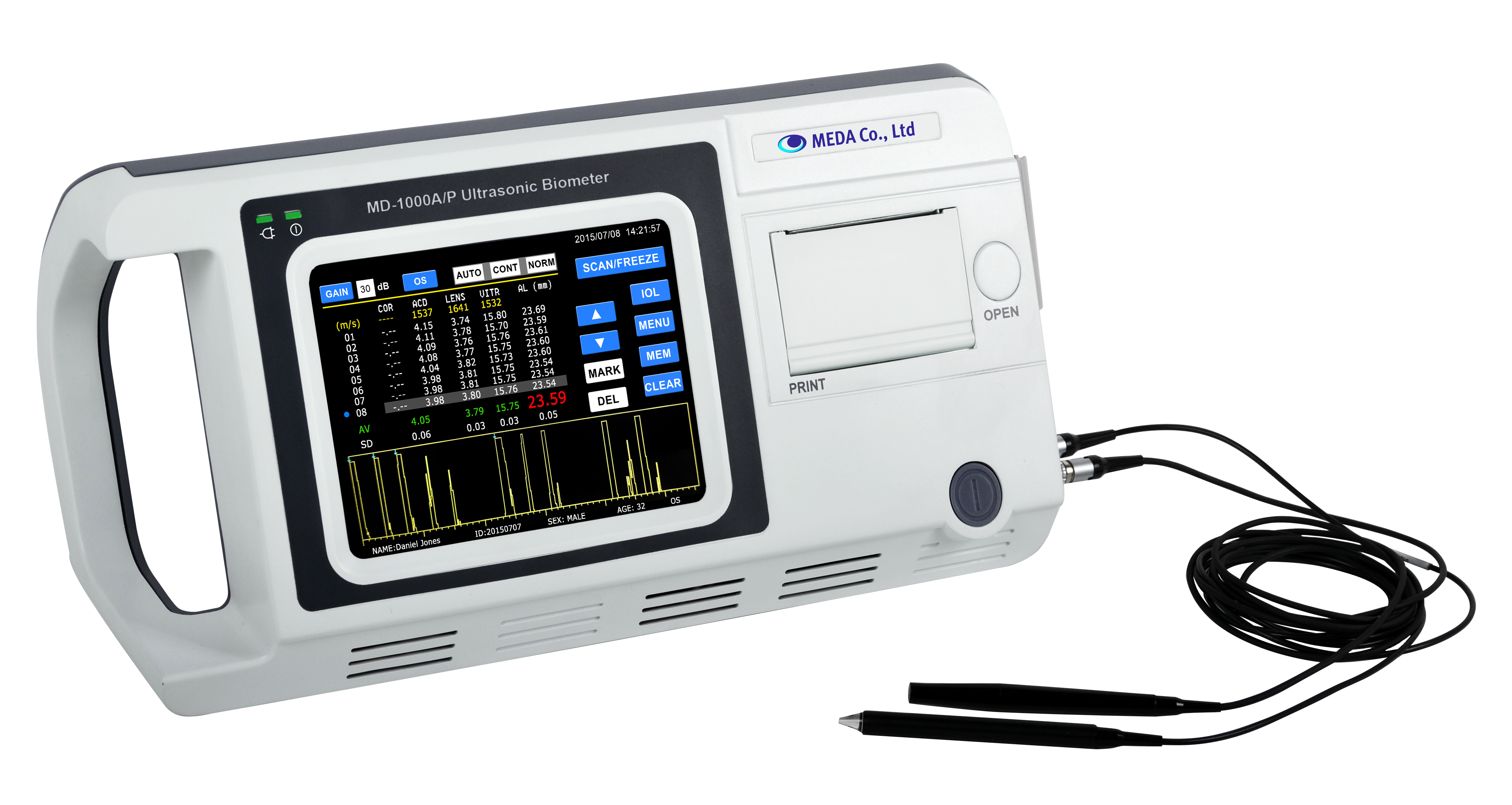

Meda MD-1000A/P Ultrasonic Biometer/Pachymeter

A-Scan

• Ultrasonic frequency: 10MHz
• Display resolution: 0.01mm
• Total gain of receiver: ≥100dB
• Adjustable gain scope: 0～50dB
• Measuring scope (AL): 15 mm～40mm
• Measuring accuracy: ≤±0.05mm
• Measuring Parameter: ACD, LENS, VITR and AL
• Measuring mode: automatic mode or manual mode can be selectable. Automatic mode for Normal, Cataract and Aphakic mode
• Measuring method: contact and immersion, can be selectable
• IOL calculation: SRK/T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, HAIGIS, and IOL calculation
• formula after corneal refractive surgery: HISTORY DERIVED, DOUBLE-K/SRK-T, REFRACTION DERIVED, ROSA and SHAMMAS.

Pachymeter

• Ultrasonic Frequency: 15-20MHz
• Display Resolution: 1μm
• Biometry Accuracy: ≤±5μm
• Measuring Scope: 230-1200μm
