Meda MD-2300S Ultrasonic A/B Scanner

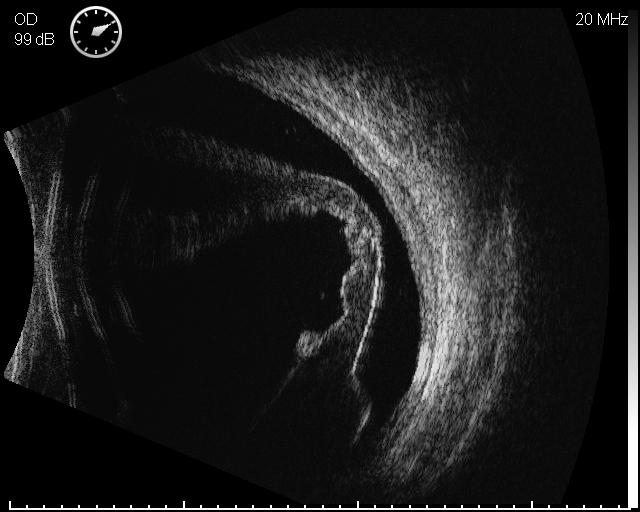

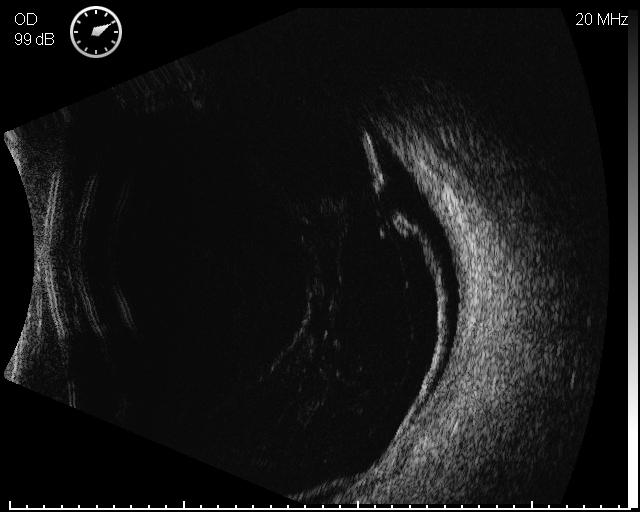

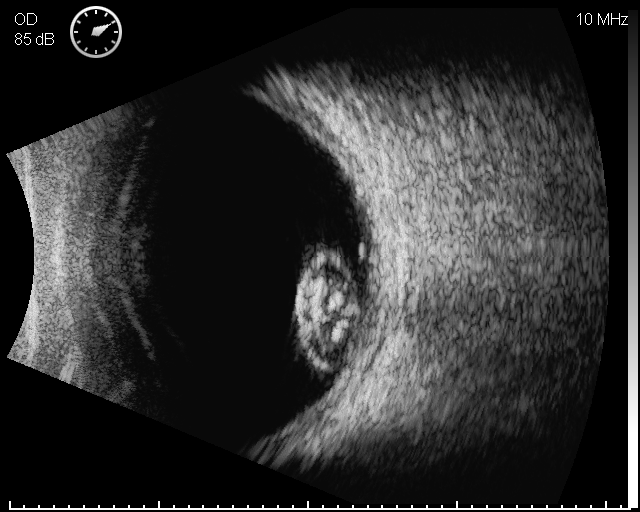

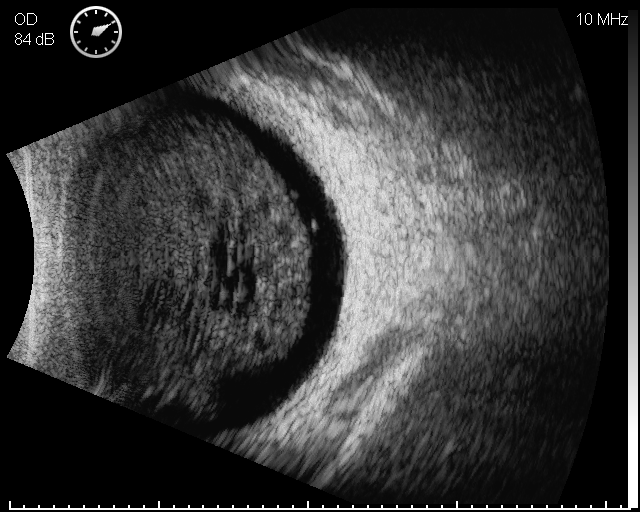

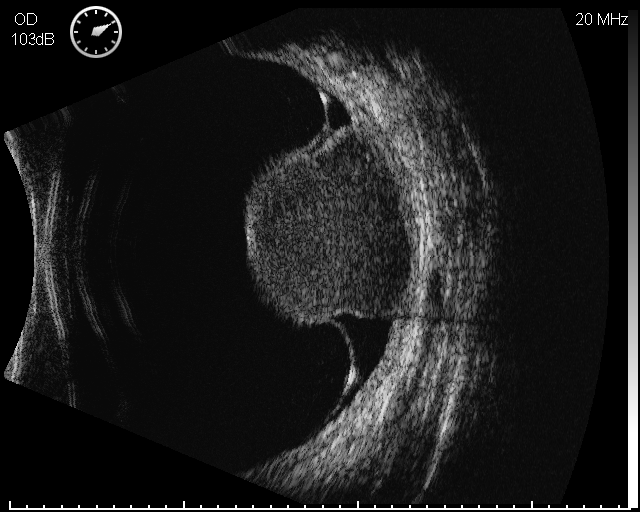

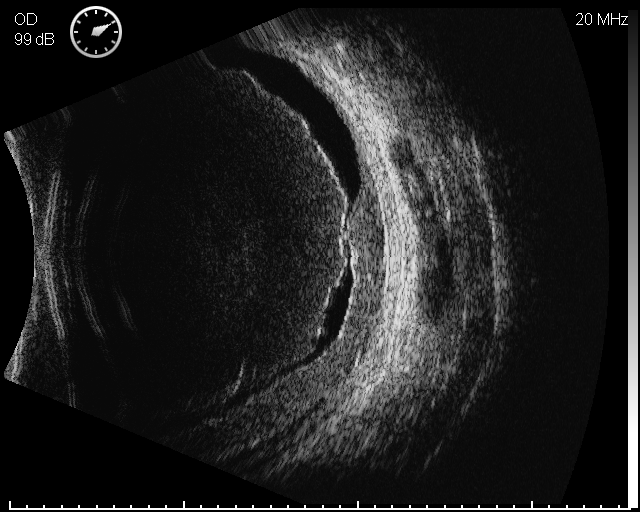

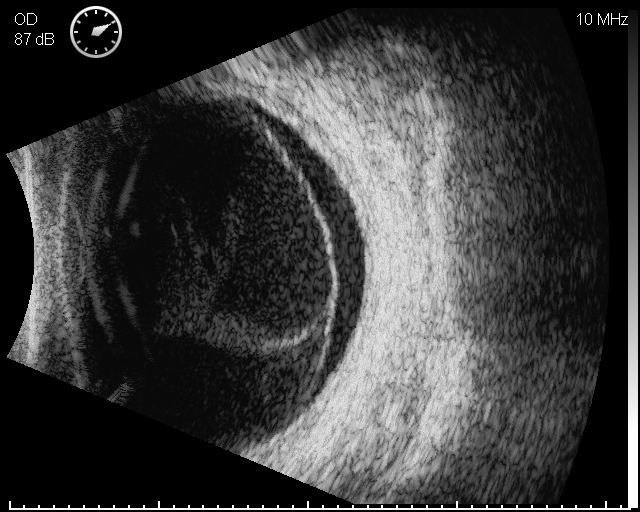

B-Scan

• Ultrasound Probes: 10MHz B-Scan Probe; new 20MHz B-Scan Probe
• Axial Resolution: 10MHz: ≤0.1mm; 20MHz: ≤0.08mm
• Lateral Resolution: 10MHz: ≤0.2mm; 20MHz: ≤0.15mm
• Scan Depth: 10MHz: 28mm-60mm; 20MHz: 19mm-40mm
• Scanning Angle: 53°
• Dynamic Loop: 10s/100 images, loop or frame-by-frame playback
• Image Saving: 100 images
• Gray Scale: 256 Levels
• Gain: 1-105dB adjustable
• TGC: -20dB to 20dB with dynamic range, manual sectional adjustment (6-section adjustable)
• Post-processing: Frame-Averaging; Pseudo-Color Codes; Gamma Correction; Text Annotation & Image Magnification

A-Scan

• Ultrasound Probe: 10MHz with Fixation Red Light
• AL Biometric Measuring Range: Axial Length (AL): 15mm-40mm;
• AL Biometric Measuring Accuracy: No more than ±0.05mm;
• Total Gain: 98dB, user’s gain adjustability: 1~60dB;
• Measuring Mode: 5 groups (Normal, Aphakic, Special, Cataract and Manual Measurement);
• Measuring Method: Immersion/Contact;
• IOL calculation: SRK-T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q and HAIGIS;
• Support IOL calculation after refractive surgery, two groups of formulas can be calculated contrastively and displayed simultaneously.
• Automatic measurement and 10 groups averaging and display standard deviation.
• Up to 8 groups of IOL constants can be stored.

General

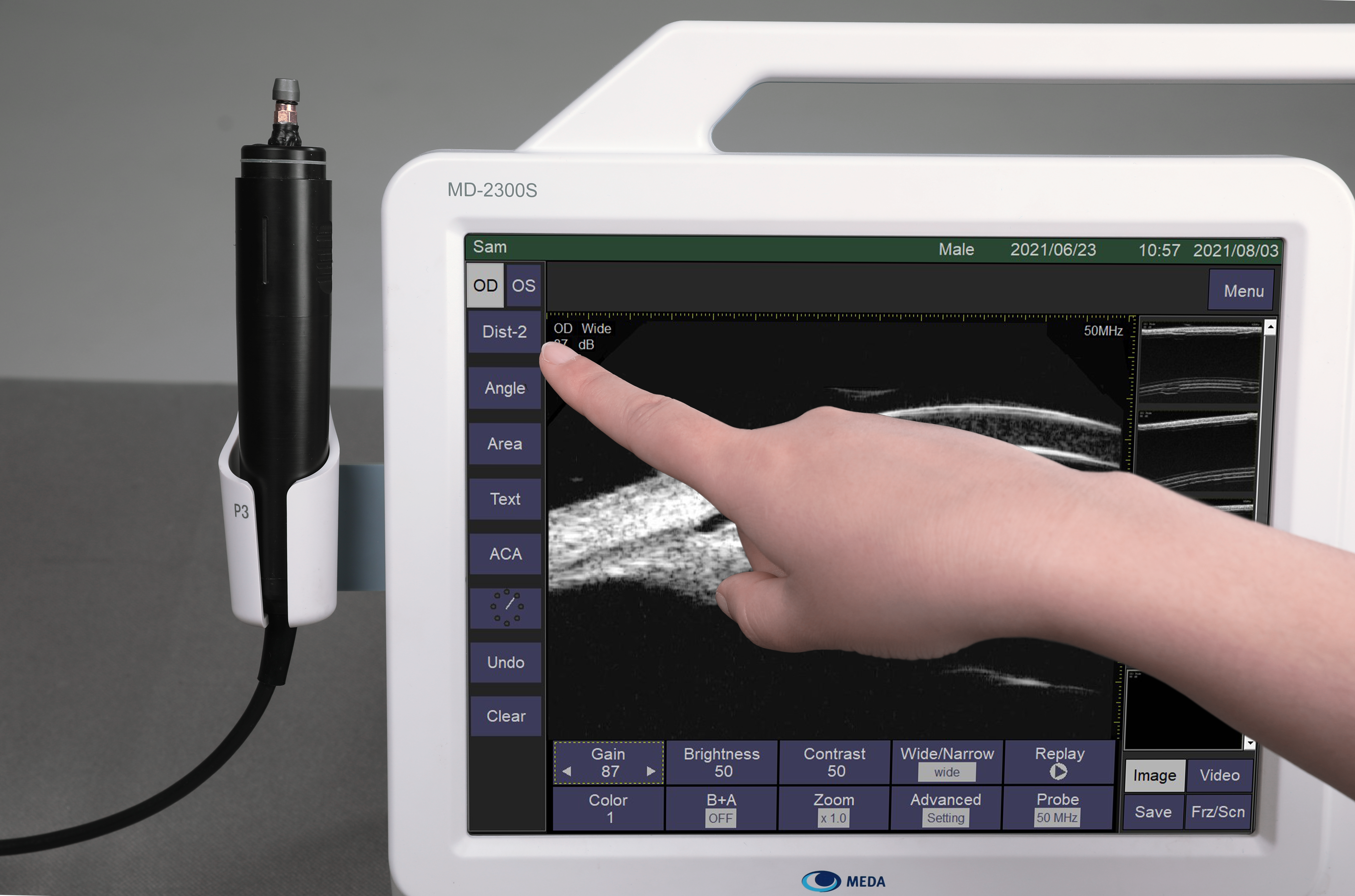

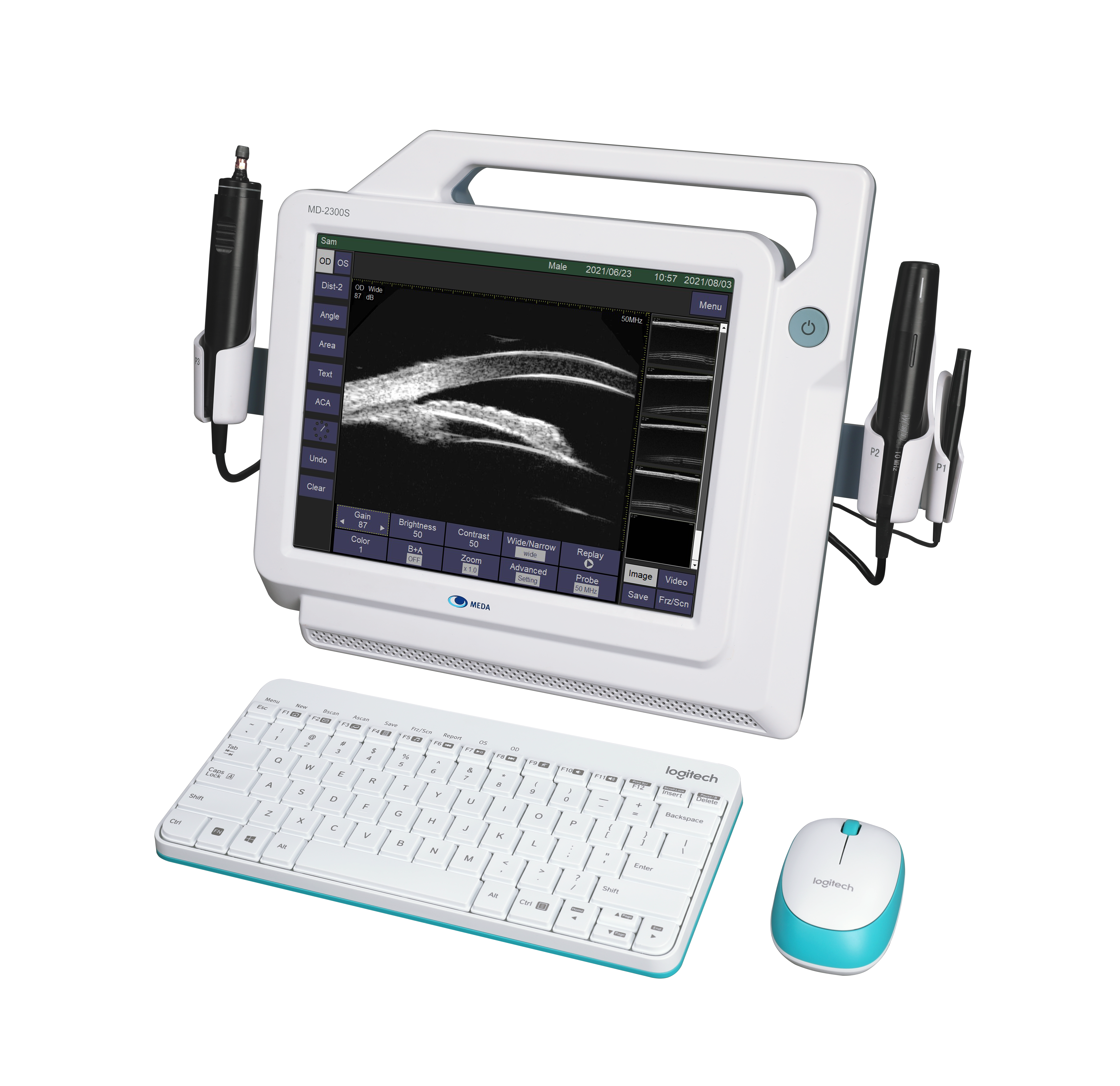

• User Interface: monitor, keyboard, mouse, touch screen and foot switch
• Monitor: resolution≥1024×768, grayscale≥256
• Keyboard and Mouse: USB interface, wireless keyboard and mouse

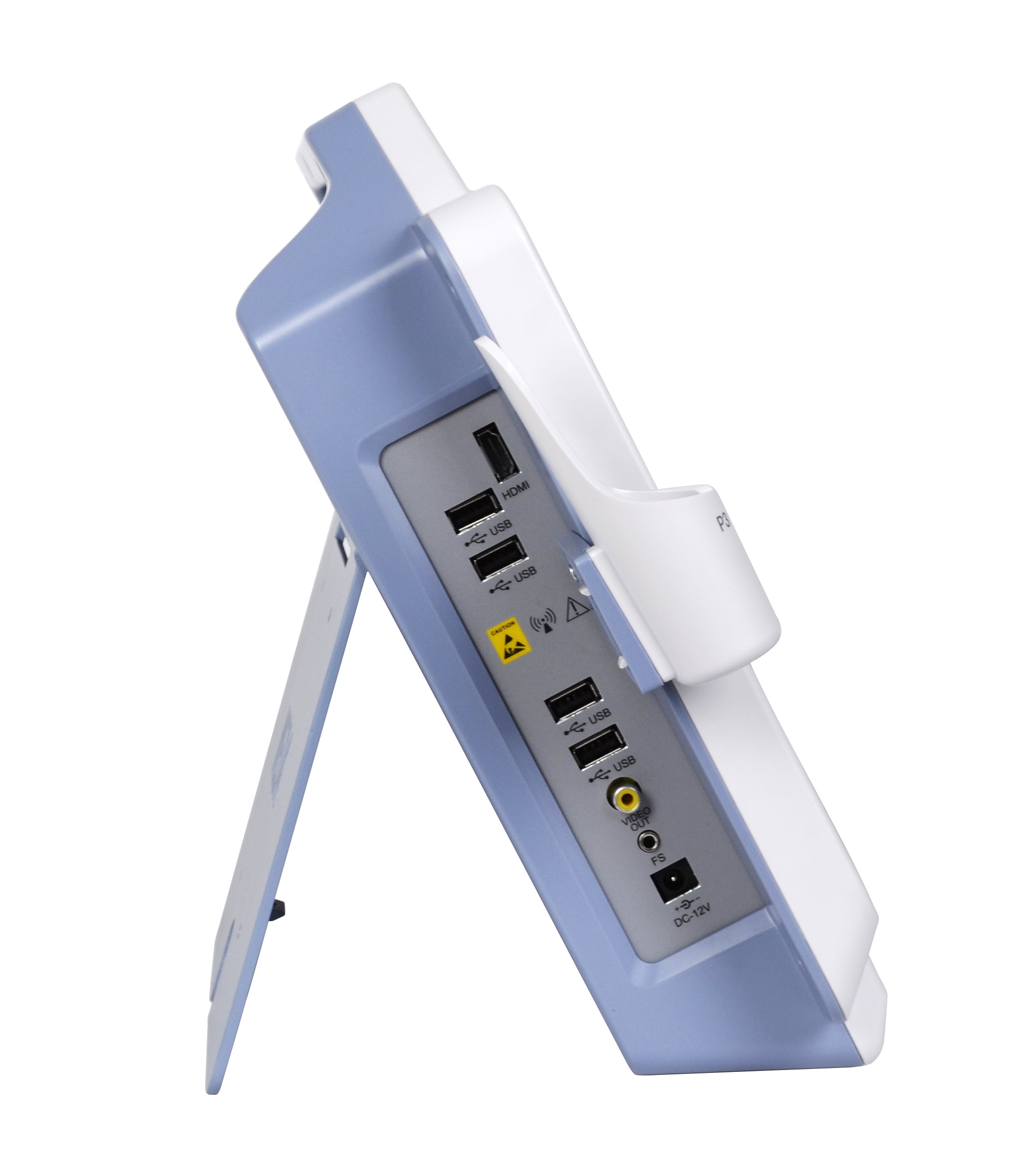

• Output Interface: 4×USB2.0 and HDMI interface
